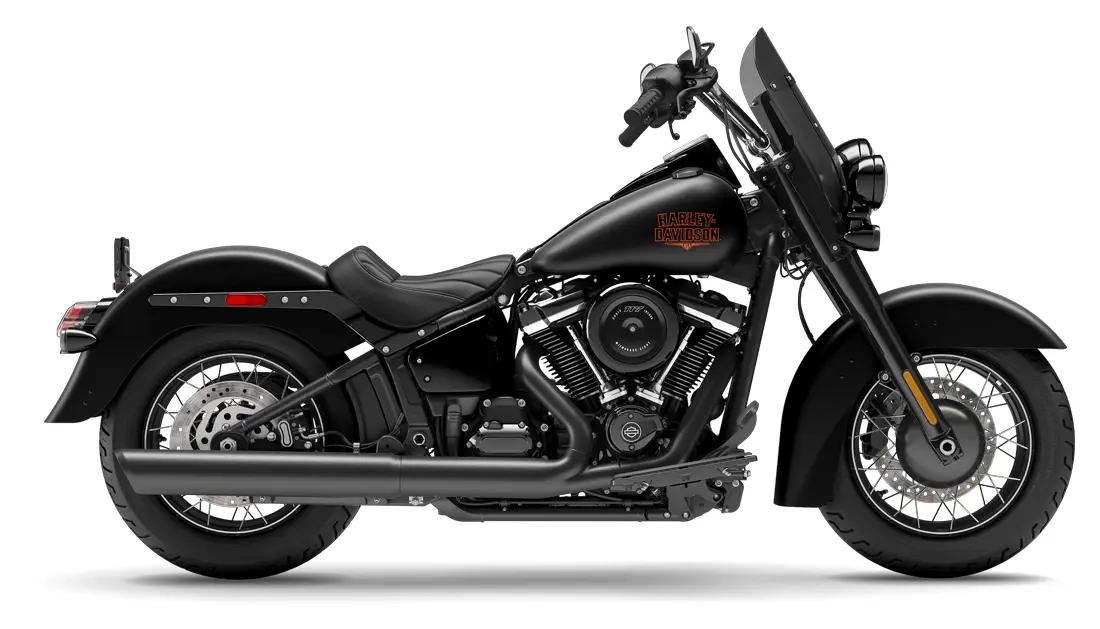

The 2026 Deadwood channels the same wandering spirit that’s pulled riders toward Sturgis and the Black Hills for generations, wrapped in one of the darkest silhouettes Harley-Davidson^® has ever built. Denim Black paint, black tubeless laced wheels, a smoked chopped windshield, blacked-out powertrain components, solo seat, and a slammed profile built around a shorter rear monoshock give it plenty of attitude, while the five-gallon tank, Milwaukee-Eight^® 117 Classic motor, and modern Softail^® chassis keep one foot in Harley-Davidson history and the other somewhere out in the Badlands.

Specifications

Dimensions

add remove
- Length:

  94.9 in
- Overall width:

  36.6 in
- Overall height:

  50.0 in
- Seat height, unladen:

  26.5 in
- Rake (steering head):

  30
- Trail:

  5.8 in
- Wheelbase:

  64.2 in
- Tires, front specifications:

  130/90B16,73H,BW
- Tires, rear specifications:

  150/80B16,77H,BW
- Fuel Capacity:

  5.0 gal
- Weight, as shipped:

  657 lbs
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Classic
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117 cu in
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  120.2 ft-lb
- Engine torque (RPM):

  2,500
- Horsepower:

  98 HP / 73 kW @ 4600 rpm
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
- Final drive:

  Belt, 32/66 ratio
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
- Wheels, front type:

  Black Tubeless Laced w/ 36 Bright Spokes
- Wheels, rear type:

  Black Tubeless Laced w/ 36 Bright Spokes
- Brakes, type:

  Solid, uniform expansion rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), Headlamp:

  All LED, low beam, high beam and signature position lamp
- Lights (as per country regulation), Tail/Stop:

  LED Buffett tail lamp
- Lights, front signal lights:

  LED Bullet Turn Signals
- Lights, rear turn signals:

  LED bullet light bar
- Gauges:

  5-inch (127 mm) analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication
- Battery:

  Sealed, maintenance-free, absorbed glass mat (AGM) battery, 12V, 17.5Ah, 310 CCA at 0°F
- Charging:

  Three-phase, 48 Amp system (364 Watts @13 Volts, 900 rpm, 624 Watts max power @ 13 Volts, 2000 rpm)
- Starting:

  1.6 kW electric with solenoid shift starter motor engagement
- Auxiliary lamps:

  LED fog
- Electric power outlet:

  USB C-Type , Output 5V at 2.4 Amp
