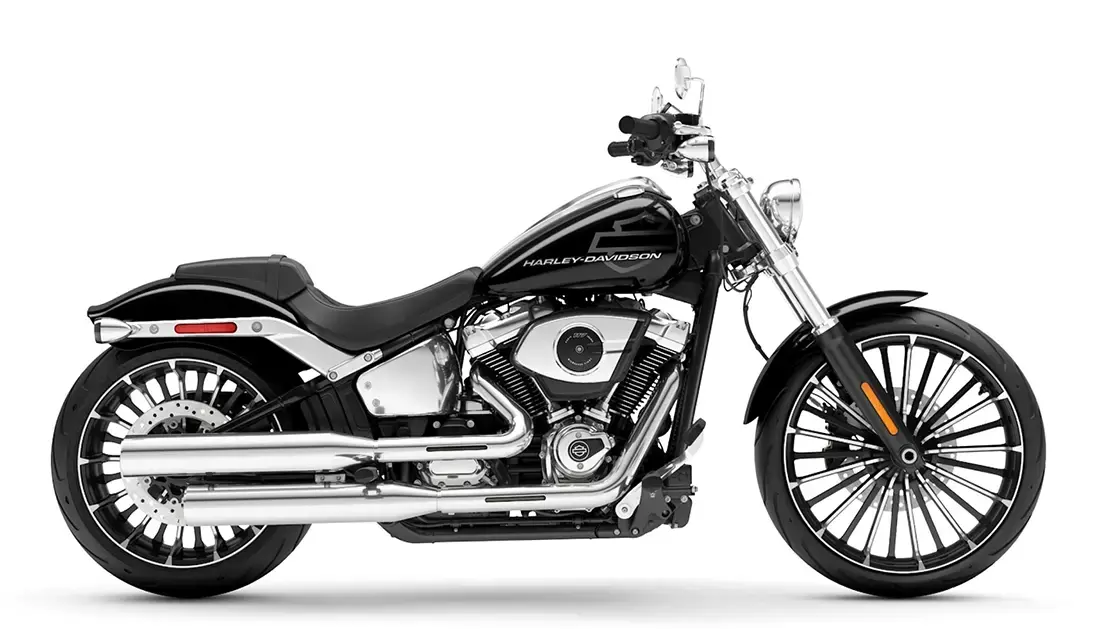

‹ Home › Inventory › 2026 FXBR- Breakout®

With 34 degrees of rake in the neck, a bobtail fender, and a 240mm rear tire, the 2026 Breakout feels like a factory-built street sweeper. But don't get lost in the long-and-low chopper lore. This bike also offers USB-C charging, Rider Safety Enhancements standard, a monster Milwaukee-Eight® 117 Custom, two new paint options, and much more.

Specifications

Dimensions

add remove
- Length:

  93.5 in
- Seat height, unladen:

  26.2 in
- Ground clearance:

  4.5 in
- Rake (steering head):

  34
- Trail:

  5.7 in
- Wheelbase:

  66.7 in
- Tires, front specifications:

  130/60B21,63H,BW
- Tires, rear specifications:

  240/40R18,79V,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  655 lbs
- Weight, in running order:

  681 lb
- Tire, type:

  Michelin® Scorcher 11, front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Custom
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  126.1 ft-lb
- Engine torque (RPM):

  3000
- Horsepower:

  104 HP / 77 kW @ 4800 rpm
- Lean angle, right (deg.):

  26.8
- Lean angle, left (deg.):

  26.8
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  49 mpg (4.8 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Gloss black, 26-spoke cast aluminum
- Wheels, rear type:

  Gloss black, 26-spoke cast aluminum
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
