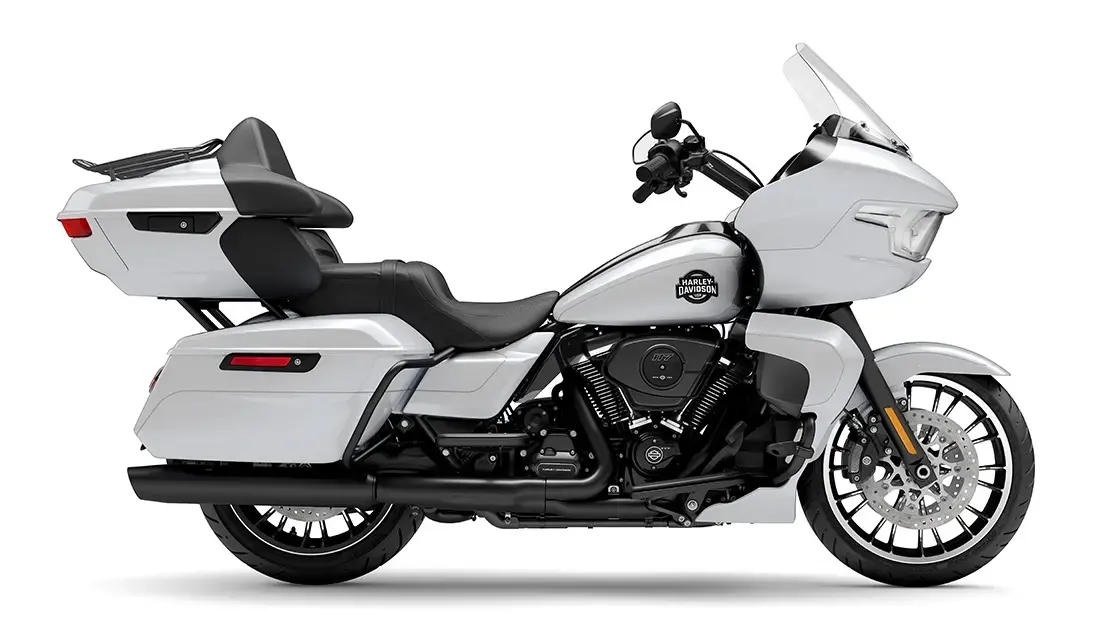

‹ Home › Inventory › 2026 FLTRXL- Road Glide® Limited

The 2026 Road Glide Limited sets the new standard for long-haul touring built for two. The Milwaukee-Eight® VVT 117 motor delivers unstoppable power, while heated seats, an all-new Grand Tour-Pak® with flush lighting, and a four-speaker, 200-watt audio system turn every mile into a story you and your passenger can share forever. This is as good as two-up touring gets.

Specifications

Dimensions

add remove
- Length:

  103.1 in
- Seat height, unladen:

  29.1 in
- Rake (steering head):

  26
- Wheelbase:

  64.0 in
- Tires, front specifications:

  130/60B19 M/C 61H
- Tires, rear specifications:

  180/55B18 M/C 80H
- Oil capacity:

  5 qt.
- Weight, as shipped:

  882 lbs
- Weight, in running order:

  919 lb
- Luggage capacity – volume:

  5.05 cu ft (0.143 m3)
Engine

add remove
- Engine:

  Milwaukee-Eight® VVT 117
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-1-2 dual exhaust with tapered mufflers
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  130.5 ft-lb
- Engine torque (RPM):

  3250
- Horsepower:

  106 HP / 79 kW @ 4600 rpm
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  45 mpg (5.1 l/100 km)
Powertrain

add remove
- Primary drive:

  Belt, 32/68 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
Chassis

add remove
- Front fork:

  1.9 in Dual Bending Valve
- Rear shocks:

  3 in Dual adjustable emulsions suspension with remote preload adjustment on the left shock, and threaded preload on the right shock
- Wheels, front type:

  Cast aluminum
- Wheels, rear type:

  Cast aluminum
- Brakes, type:

  Dual floating rotors (front), fixed rotor (rear)
- Brakes, caliper type:

  1.3 in, 4-piston fixed dual axially mounted front, and single axially mounted rear
Infotainment

add remove
- Infotainment system:

  Skyline™ OS
- Type:

  Full Color TFT
- Watts per channel:

  50
- Speakers:

  4
- Speaker size:

  Two 6.5 in fairing speakers plus two 6.5 in Tour-pak speakers
- AM:

  Standard
- FM:

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Languages:

  Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Danish, English (UK/USA default), French (Canada/France), German, Italian, Spanish (Mexico/Spain) & Swedish
- Text-to-Speech (TTS) languages:

  Same as Languages list
- Vehicle information screen:

  Standard
- USB:

  USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
- Bluetooth:

  Phone/Media Player, Headset
