‹ Home › Inventory › 2026 RA1250L- Pan America® 1250 Limited

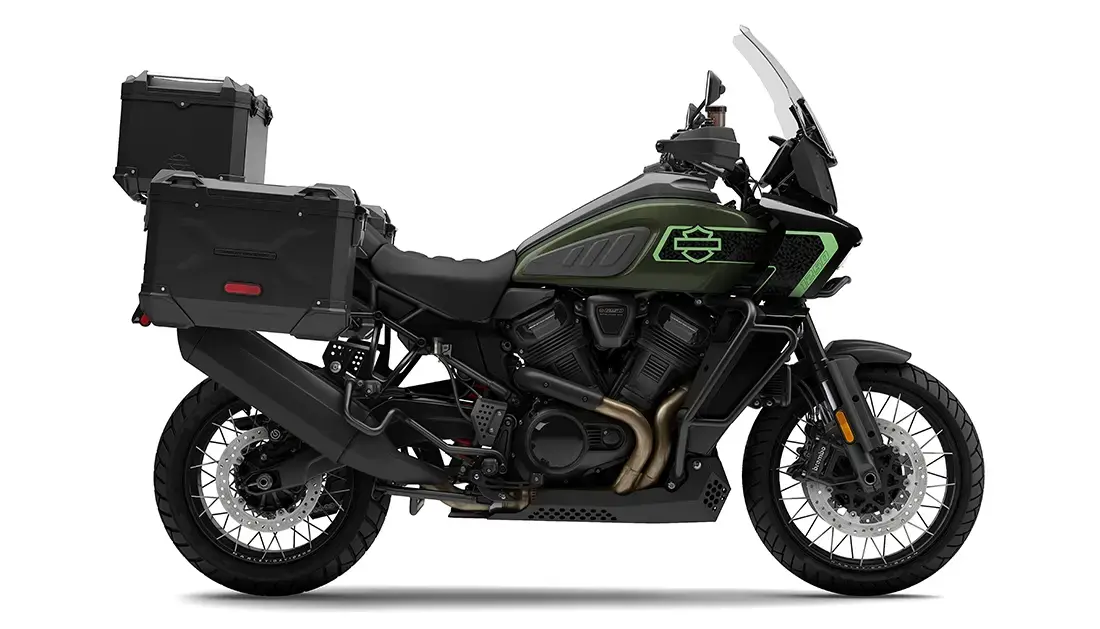

The 2026 Pan America 1250 Limited steps up with new SW-MOTECH aluminum luggage, fresh paint and graphics, and refined finishes on the Revolution® Max 1250 motor for a sharper, classic look. Standard tubeless laced wheels, Adaptive Ride Height, and a Screamin’ Eagle® Quickshifter bring confidence and control when the ground gets unpredictable, while factory-installed guarding and auxiliary lighting make it a true turn-key adventure machine. It’s fully equipped, straight from the factory, and itching to get dirty.

Specifications

Dimensions

add remove
- Length:

  92.3 in
- Rake (steering head):

  25
- Wheelbase:

  62.2 in
- Tires, front specifications:

  120/70R19 60V
- Tires, rear specifications:

  170/60R17 72V
- Oil capacity:

  4.75 qt.
- Weight, as shipped:

  626 lbs
- Weight, in running order:

  661 lb
- Luggage capacity – volume:

  4.24 cu ft (0.12 m³)
Engine

add remove
- Engine:

  Revolution® Max 1250
- Bore:

  4.1 in
- Stroke:

  2.8 in
- Displacement:

  76.40 in³
- Compression ratio:

  13.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  93.7 ft-lb
- Engine torque (RPM):

  6750
- Horsepower:

  150 HP / 112 kW @ 8750 rpm
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  46 mpg (5.1 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 19/48 ratio
- Gear ratios (overall) 1st:

  13.11
- Gear ratios (overall) 2nd:

  9.687
- Gear ratios (overall) 3rd:

  7.509
- Gear ratios (overall) 4th:

  6.057
- Gear ratios (overall) 5th:

  5.08
- Gear Ratios (overall) 6th:

  4.436
Chassis

add remove
- Front fork:

  1.9 in inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps
- Rear shocks:

  Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping
- Wheels, front type:

  Aluminum cast, satin black
- Wheels, rear type:

  Aluminum cast, satin black
- Brakes, type:

  Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor
- Brakes, caliper type:

  Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Infotainment

add remove
- Type:

  Color TFT w/ Touch
- Headset specifications (if equipped):

  Bluetooth
- Languages:

  Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Vehicle information screen:

  TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- USB:

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth:

  Phone/Media Supported
